Product Introduction:

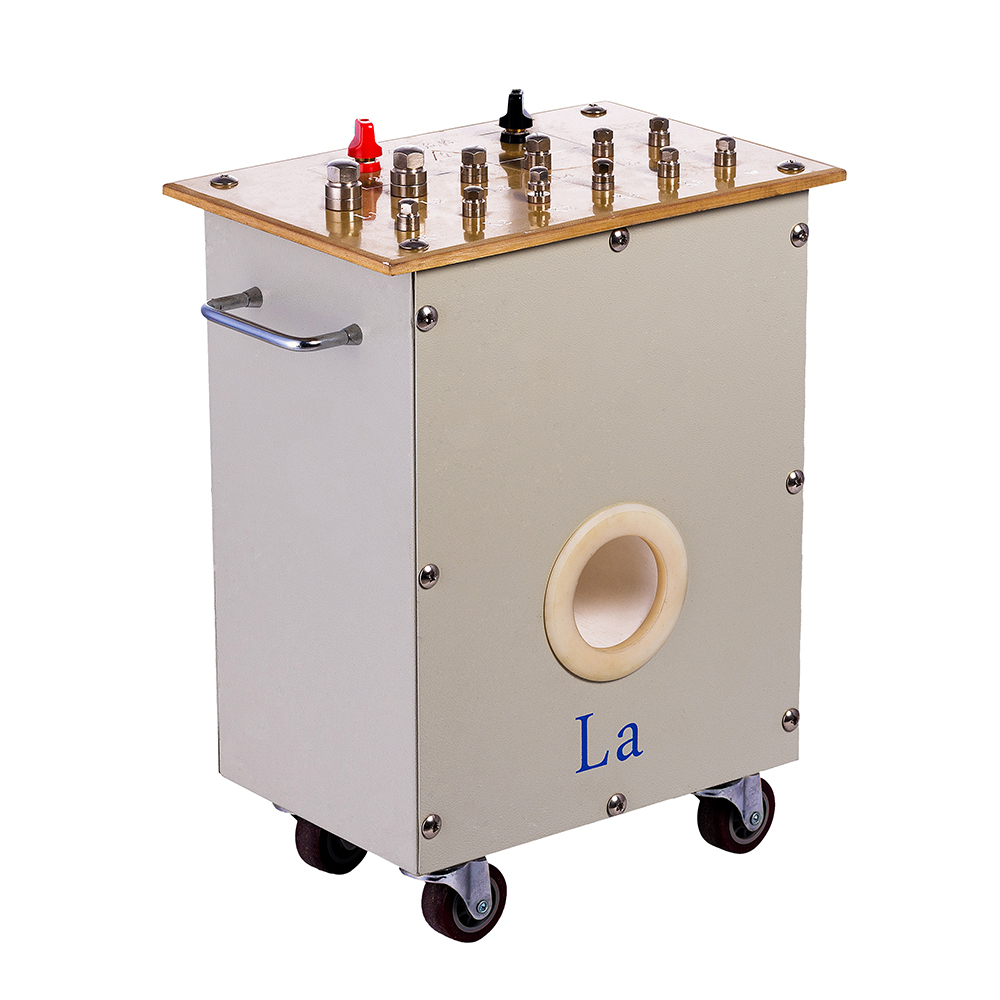

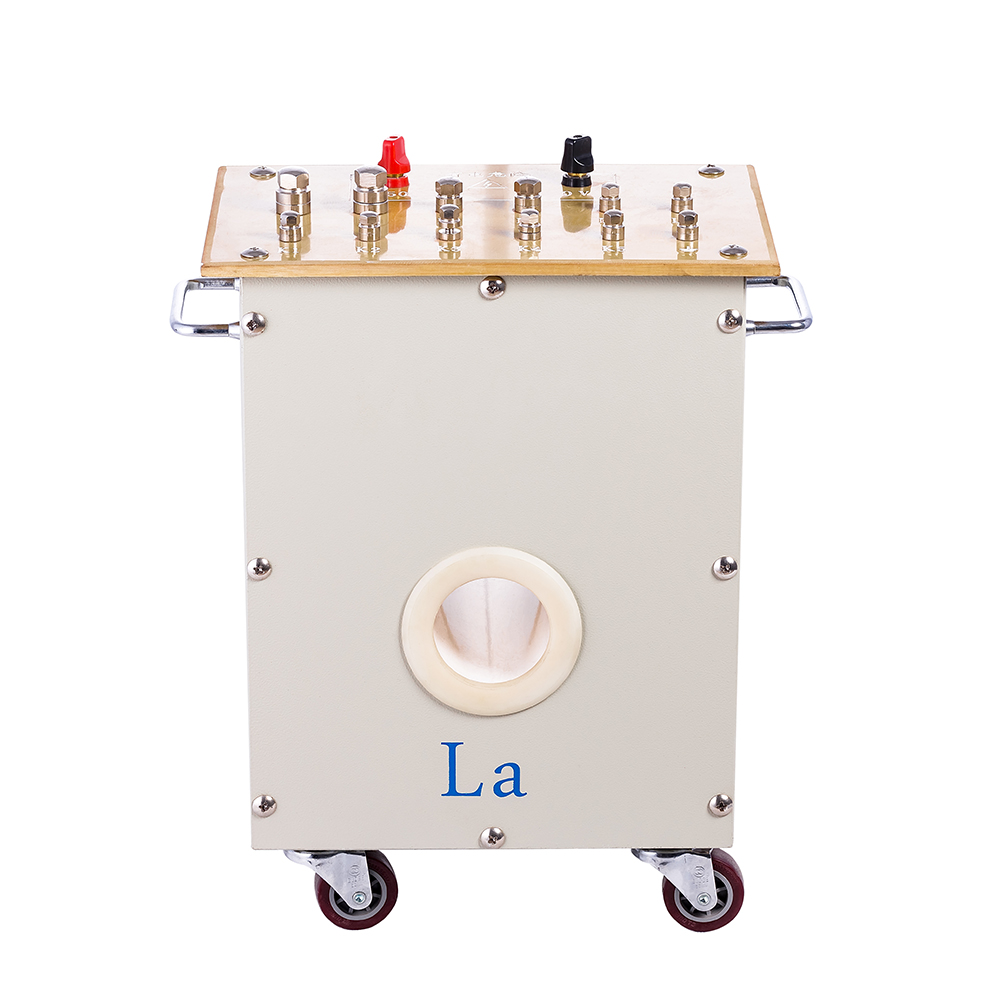

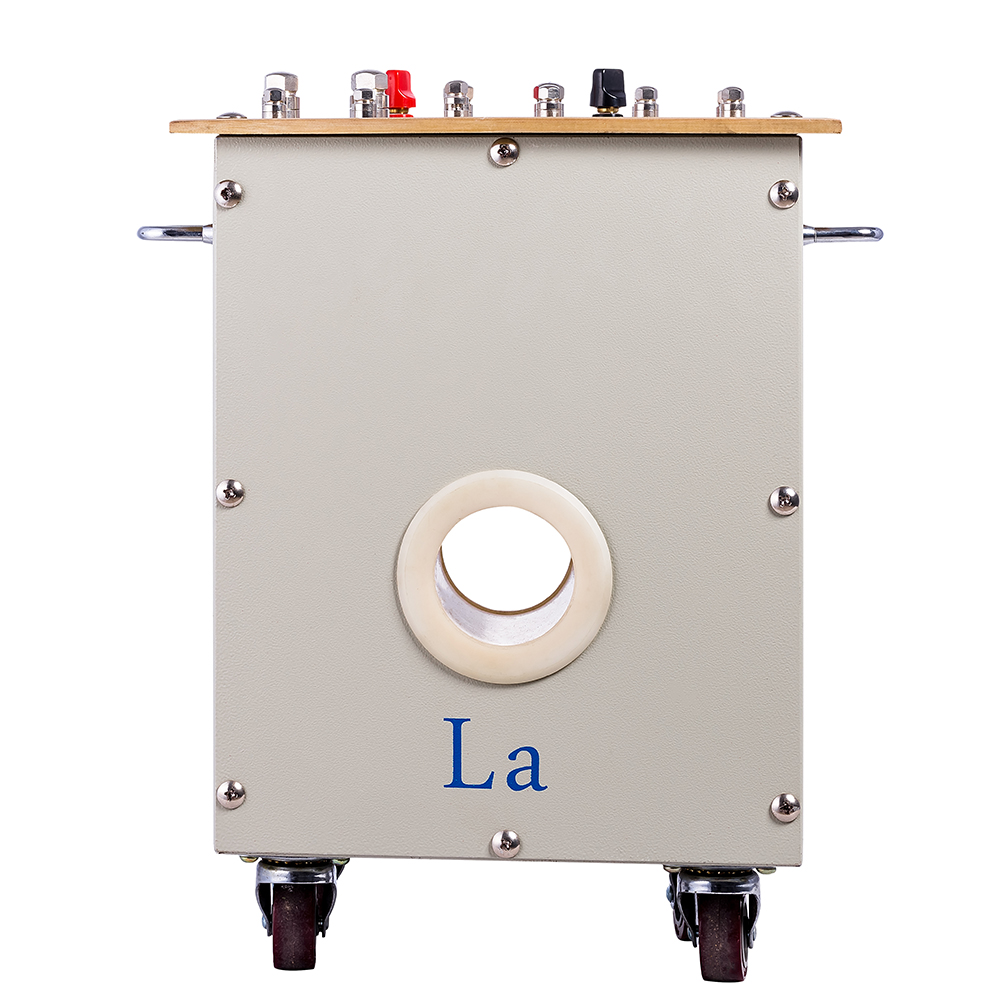

Wuhan UHV Power Technology Co.,Ltd., is a professional manufacturer and supplier of high-voltage power testing equipment in China.The SL current generator is a high-current output device specifically designed for current transformer (CT) calibration and on-site testing in power systems. It can provide a stable and reliable primary test current for the CT under test, and can also be used as a 50Hz single-phase power source for other applications.
The device features a three-winding structure design, consisting of a 220V input winding, an output winding below 100A, and a through-core winding. Different current levels can be output through the through-core winding, meeting the application requirements of on-site CT calibration, laboratory testing, and power metering equipment verification.
 |  |  |
Product Characteristics:
1. Three-winding structure design
Adopts a combination of input winding, output winding, and through-core winding, suitable for primary current output requirements in different testing scenarios, with reliable structure and flexible operation.
2. Flexible current output method
The rated output current is as specified on the nameplate. When the conductor passes through the core with multiple turns, the allowable rated current decreases accordingly as the number of through-core turns increases. The through-core turns can be flexibly configured based on actual test current requirements.
3. Supports overload operation
The device allows long-term operation at rated current, and also supports 1.5 times rated current overload operation for up to 30 minutes, meeting the requirements of some high-load testing scenarios.
4. Easy to move
The device is equipped with casters, facilitating movement and transport in laboratory, substation, and on-site testing environments, improving on-site usability.
5. Suitable for CT calibration
Can be used as a primary current source in current transformer calibration systems, providing a stable primary test current for CT ratio, error, and related testing.
Technical parameters:
| service conditions | טֶמפֶּרָטוּרָה | -5℃~+40℃ |
| לחות | ＜80% | |
| Allow long service at rated current | ||
| אפשר עומס יתר של 1.5 פעמים למשך חצי שעה | ||
| מימד גבול | SL-4 | 420*240*4500mm3 |
| SL-7 | 600*350*700mm3 | |
| מִשׁקָל | SL-4 | 14 ק"ג |
Application Scenarios:
Current transformer (CT) calibration
Provides test current to the primary side of the CT.
Used for CT ratio, error, and other performance testing.
Suitable for on-site calibration of metering CTs and protection CTs.
Substation on-site testing
Used for electrical equipment installation, commissioning, and maintenance in substations.
Can provide a high-current test source for on-site CT testing.
Caster design facilitates equipment movement on site.
Power metering and calibration
Used for verification and calibration of energy metering devices and transformers.
Suitable for power metering centers, metrology verification institutions, and other organizations.
Relay protection testing
Provides primary high current for relay protection related testing.
Can be used for protection system commissioning and on-site maintenance.
Electrical equipment production and factory testing
Suitable for product testing at electrical equipment manufacturing enterprises.
Can serve as a high-current test power source during the production process.
Power laboratories
Used for current testing in universities, research institutions, and power laboratories.
Can be used as a 50Hz single-phase high-current test power source.
High-current conductor and connection testing
Can be used for testing busbars, conductors, connectors, and other low-voltage high-current paths.
Used to verify equipment performance under high-current conditions.
Frequently Asked Questions
Q: What is the SL Current Generator mainly used for?
A: The SL Current Generator is mainly used as a high-current test source for current transformer (CT) testing and calibration. It can also be used as a 50Hz single-phase power source for other electrical testing applications.
Q: Can it be used for current transformer (CT) testing?
A: Yes. The SL Current Generator is designed to provide primary-side test current for CT testing, including applications such as CT ratio and error testing.
Q: How does the through-core winding work?
A: The test conductor can be passed through the core multiple times to obtain different current levels. As the number of turns increases, the allowable current decreases accordingly. This allows users to flexibly configure the test current according to their requirements.
Q: Can the generator operate continuously?
A: Yes. The unit can operate continuously at its rated current. It also supports operation at 1.5 times the rated current for up to 30 minutes, subject to the specified operating conditions.
After-Sales Service:
Customers who purchase this product are entitled to the following after-sales service:
1、Three-Month Replacement Guarantee: Within three months from the date of purchase, if any quality issues arise, the company will provide a free replacement product. Please note that the product must not be disassembled by the user during this period.
2、One-Year Free Repair: Within one year of purchase, the company will repair the product free of charge should any quality problems occur.
3、Lifetime Repair Service: The company is responsible for long-term repair of the product. After the one-year warranty period, repairs will be carried out with a reasonable charge for replacement parts.
4、Important Notice: If the product malfunctions, please contact a professional service representative or return the product to our company for repair. Do not attempt to disassemble the product yourself. The company shall not be held responsible for any damage caused by unauthorized disassembly.
