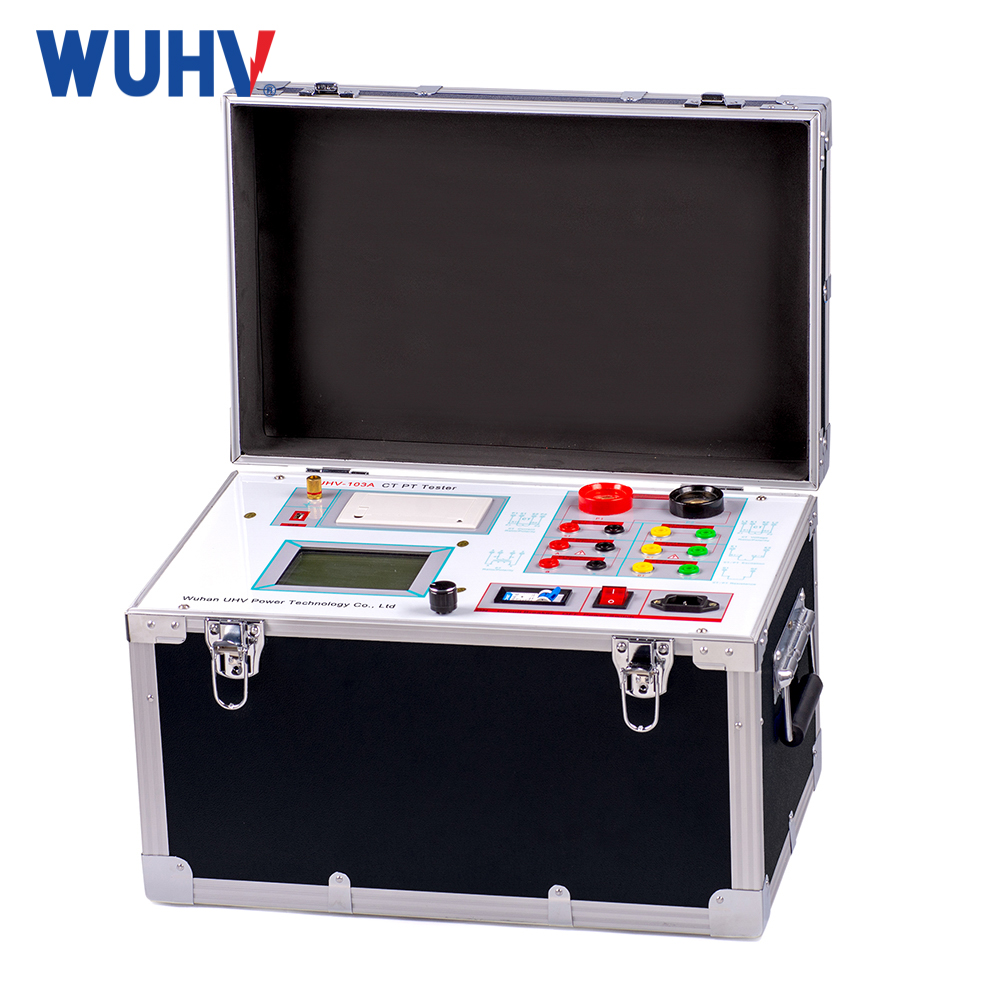

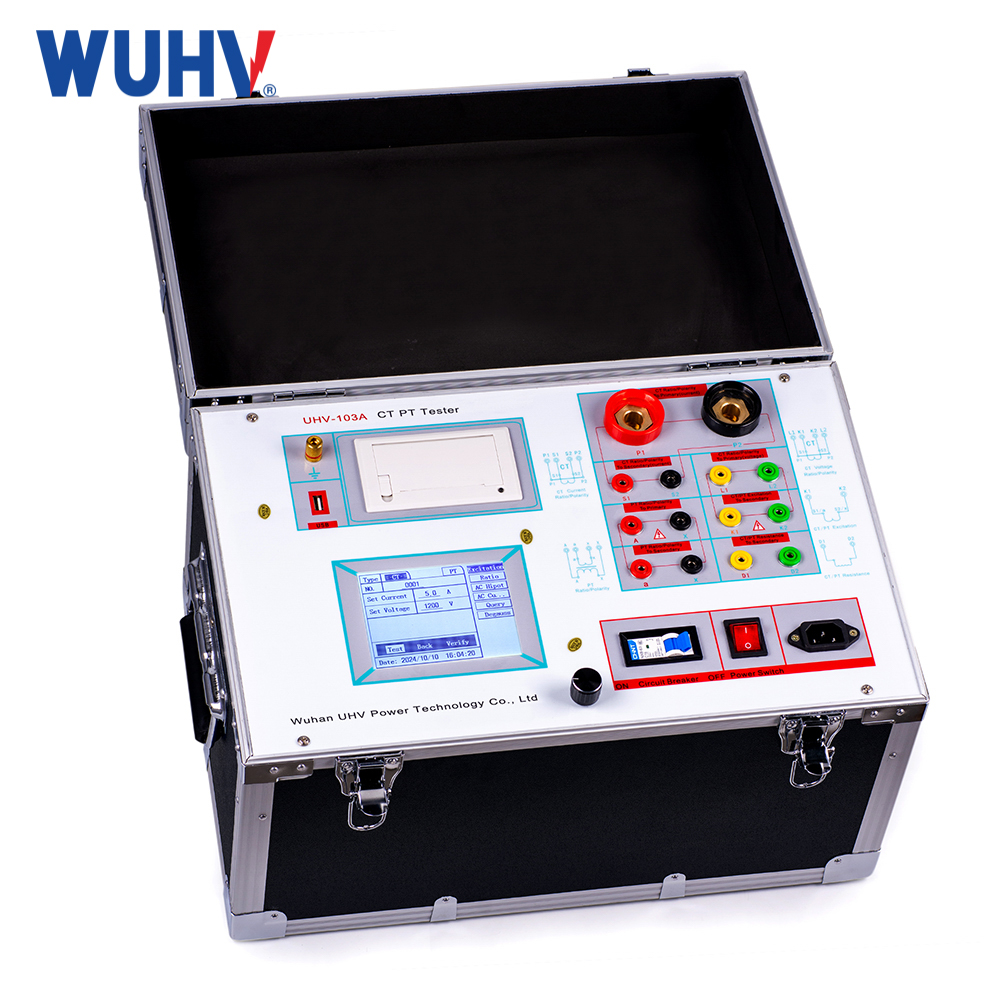

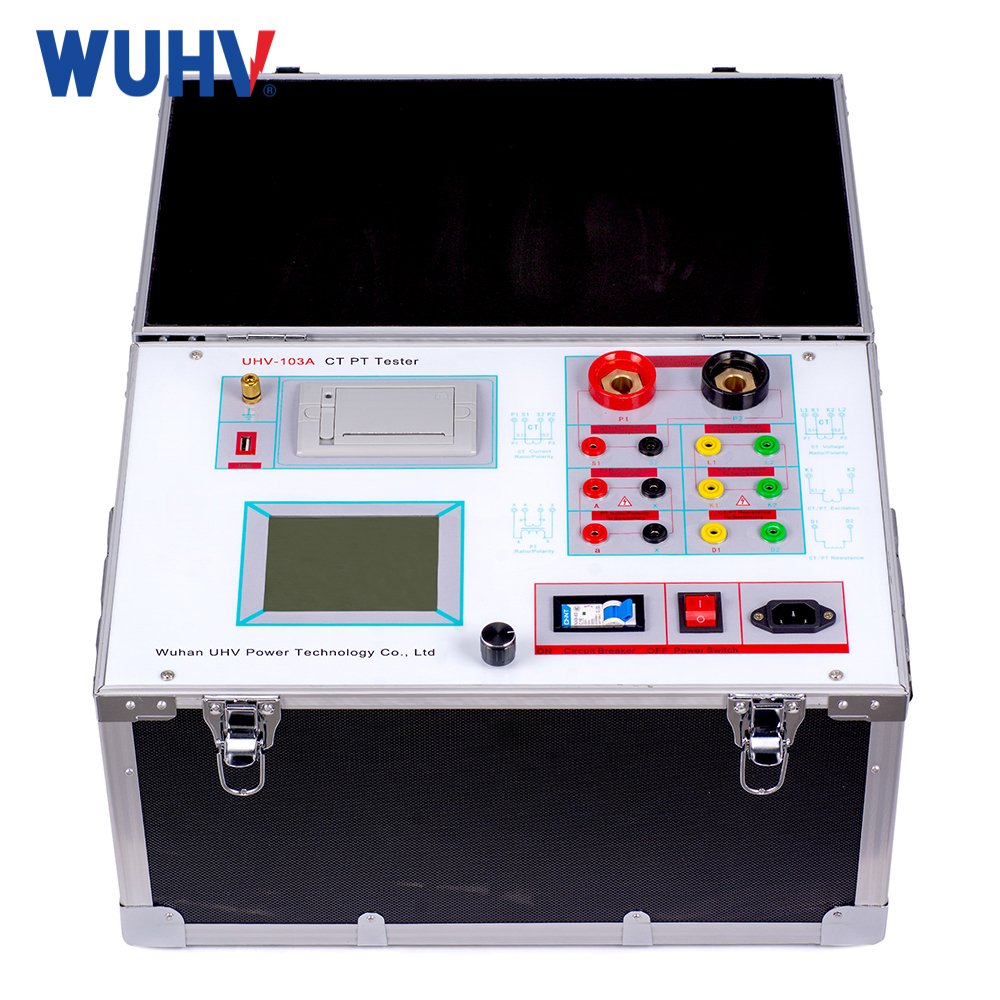

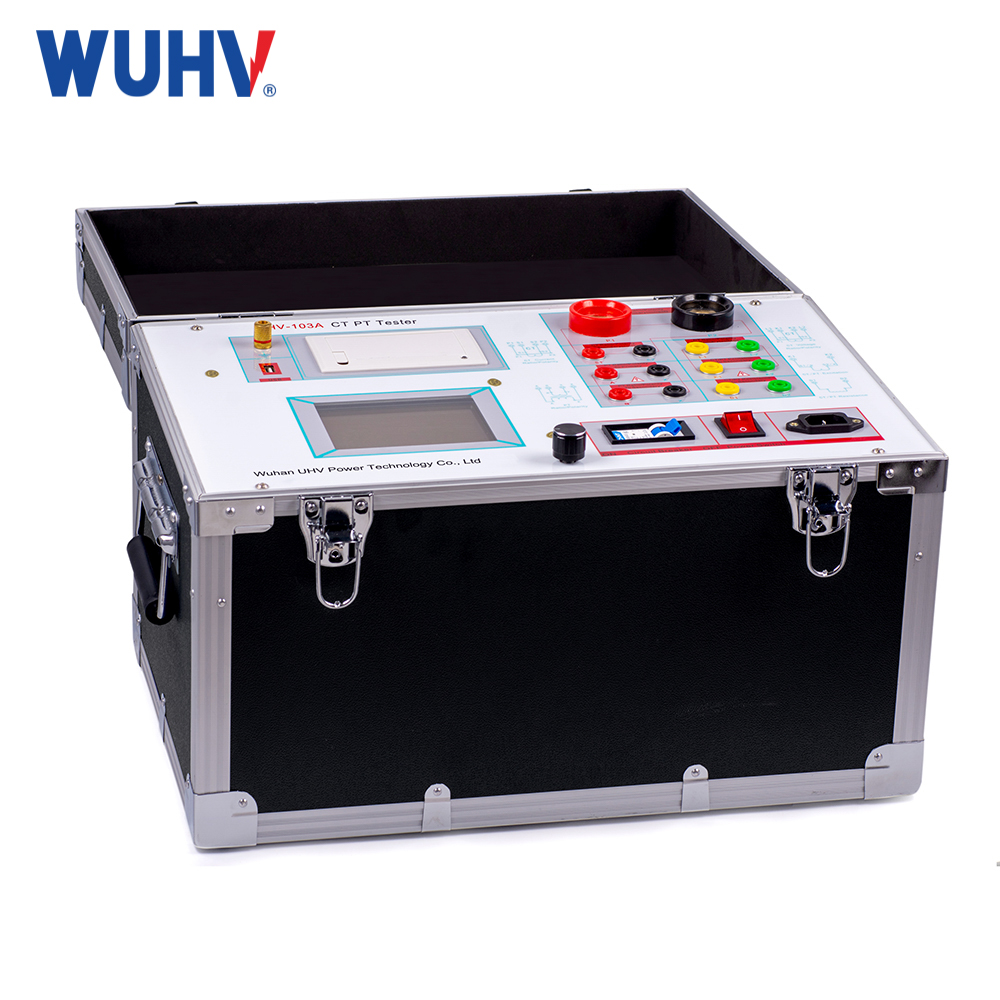

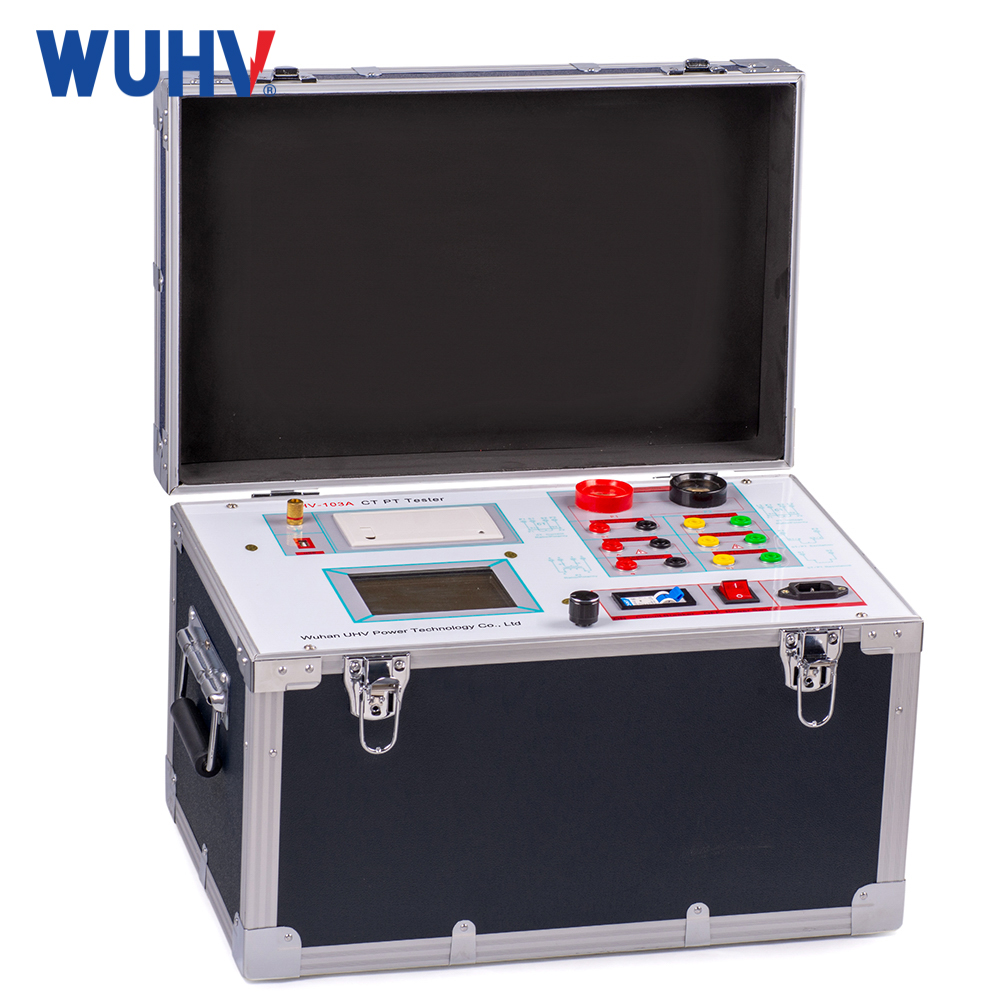

Product Introduction
CT/PT TESTER is mainly used for field testing of P class CT and PT. The test items mainly include excitation characteristic, transformation ratio, polarity, Degauss, 5％ and 10％ error curves, secondary circuit check, withstand test of power frequency alternating current and secondary load. Adopt LCD, self-equipped minitype printer supporting field printing; supporting to use USB flash disk to dump data, with simple and convenient operation.
Parameter
Working power | AC220V±10% ,50Hz | |
Equipment output | 0~1200V 5kVA maximum setting value 20A | |
High current output | 0-600A | |
Excitation measurement accuracy | ≤0.5%(0.2%*reading+0.3%*range) | |
Secondary winding resistance measurement | range | 0.1~300Ω |
accuracy | ≤ 1.0% (0.4% * reading+0.6% * range) | |
Secondary actual load measurement | range | 5~500VA |
accuracy | ≤ 0.5% (0.2% * reading+0.3% * range) ± 0.1VA | |
Phase measurement (angular difference) | range | 1~99.9min |
resolution | 0.1min | |
CT turns ratio measurement | range | ≤25000A/5A(5000A/1A) |
accuracy | ≤ 0.5% (0.2% * reading+0.3% * range) | |
CT turns ratio measurement | range | ≤500kV |
accuracy | ≤ 0.5% (0.2% * reading+0.3% * range) | |
Working temperature | -10℃ ~ 40℃ | |
Working humidity | ≤90% | |
Size | 410mm × 260mm × 340mm | |
Host Weight | 25kg | |
Feature:
1. Support detection of CT and PT
2. Meet the requirements of GB1207, GB1208 and other regulations
3. Without connecting other auxiliary equipment, a single machine can complete all the test items, complete the excitation and transformer specific polarity tests at the same time, and test the transformer bushing CT
4. Self-equipped micro fast printer, which can directly print test results on site
5. Easy to operate, with intelligent prompt, making it easier for users to operate

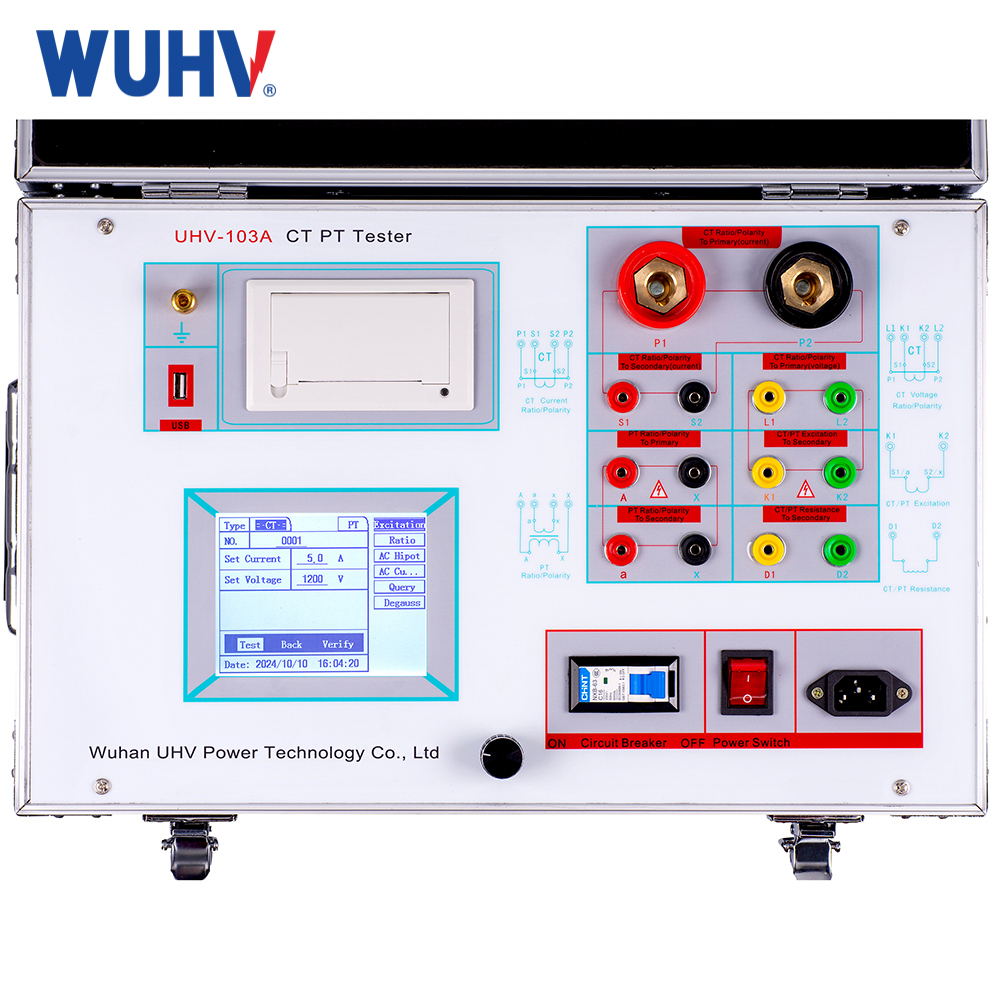

6. Large screen LCD, graphical display interface
7. Automatically give CT/PT (excitation) inflection point value according to regulations
8. Automatically give 5% and 10% error curves
9. 3000 sets of test data can be saved without loss after power failure
10. Support USB flash disk transfer data, which can be read through standard PC and generate WORD report
Small and lightweight ≤ 22kg, very convenient for on-site testing
