Product Introduction

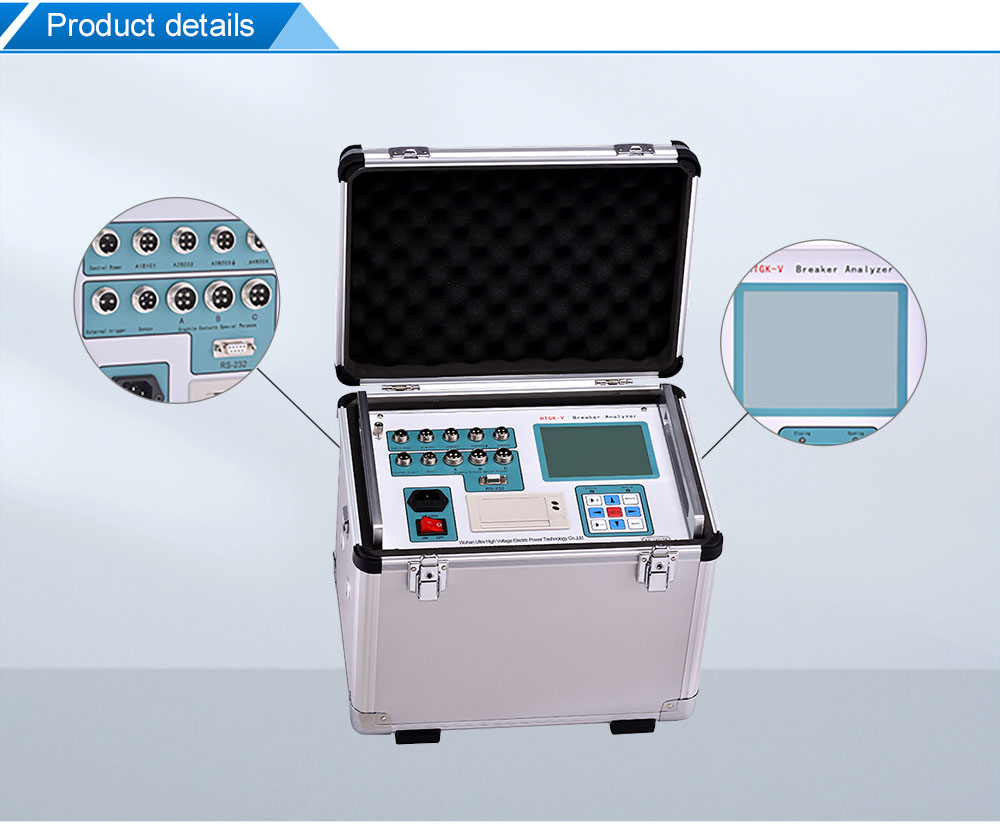

The UHV-405 Circuit Breaker Characteristic Tester is a professional testing device used for dynamic characteristic detection and analysis of high-voltage circuit breakers. It can perform mechanical characteristic testing on high-voltage circuit breakers of different voltage levels and structural types. The device is suitable for various switchgear including minimum oil circuit breakers, bulk oil circuit breakers, vacuum circuit breakers, and SF₆ circuit breakers.
Product functions
1. Opening/closing time testing
Enables synchronous measurement of the opening time, closing time, and operation time difference between interrupters of the circuit breaker, and analyzes three-phase synchronization and operation consistency between interrupters, helping users accurately assess the operating performance of the circuit breaker's opening/closing mechanism.
2. Speed and travel testing
Collects motion data during circuit breaker operation through speed sensors. It can measure key parameters such as opening speed, closing speed, just-opening speed, just-closing speed, and operating travel, and generate corresponding speed and travel characteristic curves, providing reliable data for circuit breaker mechanical performance testing and mechanism adjustment.
3. Bounce characteristic testing
Detects the bounce phenomenon of contacts during circuit breaker closing, measures bounce time, bounce count, and related waveforms, and intuitively reflects the contact closing process through test curves, helping to analyze the operating condition of circuit breaker contacts and operating mechanism.
4. Opening/closing coil current testing
Enables synchronous acquisition of the operating current of the circuit breaker's opening coil and closing coil, recording the complete current variation process and waveforms. By analyzing coil current characteristics, it assists in determining the working condition of the operating coil and circuit breaker control circuit, providing reference for equipment fault diagnosis and maintenance.
5. Dynamic resistance testing
Supports circuit breaker dynamic resistance testing, recording dynamic resistance changes and waveforms during contact movement. This function is particularly suitable for Siemens graphite contact switches, enabling dynamic resistance waveform testing on related interrupters.
6. Reclosing characteristic testing
Supports characteristic testing of the circuit breaker reclosing process. Parameters such as reclosing interval time, metal short-circuit time, and dead time can be set according to test requirements, enabling detection of the circuit breaker reclosing operation process and providing test data for reclosing performance analysis.
תכונות מוצר
1. בקרת IPC.
2. צורת גל התנגדות דינמית יכולה להיבדק בצורה מהימנה גרפיט מגע מתג 6 שבר.
3. זמן: זמן פתיחה וזמן סגירה קבועים של 12 אנשי קשר, באותו זמן בפאזה, באותו זמן מחוץ לשלב.
4. קפיצה: זמן קפיצה סגירה, מספרי קפיצה, צורת גל קפיצה לכל מפסק; גודל הריבאונד עבור כל מפסק.
5. מהירות: פתיחה מיידית, מהירות סגירה, מהירות מקסימלית, גל מהירות.
6. טווח: טווח יתר, טווח עוקף.
7. זרם: זרם פתיחה/סגירה של סליל פתיחה/סגירה, ערך זרם, דיאגרמת צורת גל.
8. סגירה מחדש: הגדרת זמן מרווח סגירה מחדש, זמן קצר חשמלי ממתכת, זמן מרווח ללא זרם.
9. Action voltage: DC20-250V/10A (rated operating) digital adjustable power circuit breaker, setting opening/closing coil action voltage, finish the breaker low voltage action test.
10. חיישן מהירות אוניברסלי קל במיוחד להתקנה.
11. ישים לכל סוגי מתג SF6 מקומיים וזרים, שילוב GIS של חשמל, מתג ואקום, מתג שמן.
12. החלפה פעם אחת, קבל את כל הנתונים והתרשים.
13. המארח יכול לאחסן יותר ממיליון יחידות של נתוני בדיקה, שעון בזמן אמת בתוך המכונה לאחסון קל של אחסון ארכיון תאריך ושעה.
14. עם ממשק U-Disk, יכול לשמור נתונים ישירות לדיסק U.
15. מסך גדול, רחב ממוזג, LCD עם תאורה אחורית, תצוגה מלאה של כל הנתונים והתרשים, התאמת ניגודיות LCD אלקטרונית, זיכרון כיבוי.
16. עם מדפסת, הדפס את כל הנתונים והתרשים.
17. נסחו את תוכנת הניתוח לפתיחה מיידית, מהירות סגירה לפי דרישה לניתוח, היא מתאימה למדידת מהירות מכל סוג מתגים.
Application Scenarios
1. Substation circuit breaker testing
Used for testing parameters such as opening/closing time, synchronization, speed, travel, bounce, and coil current of high-voltage circuit breakers in substations, providing data support for equipment condition monitoring and maintenance.
2. Power plant high-voltage switch testing
Suitable for installation commissioning, handover testing, and operation and maintenance of high-voltage circuit breakers and related switchgear in power plants, helping to verify whether circuit breaker mechanical operating characteristics meet equipment operation requirements.
3. GIS combined electrical apparatus testing
Can be used for mechanical characteristic testing of circuit breaker units in GIS, testing opening/closing time, speed, synchronization, and other dynamic parameters. Suitable for on-site installation, commissioning, and maintenance work.
4. High-voltage switchgear testing
Used for mechanical characteristic testing of vacuum circuit breakers and other equipment in high-voltage switchgear, enabling rapid acquisition of test data such as circuit breaker operation time, speed, travel, and coil current.
5. Circuit breaker factory inspection
Suitable for factory testing of products at high-voltage circuit breaker manufacturing enterprises. It comprehensively tests circuit breaker opening/closing time, speed, synchronization, and mechanical operating characteristics, providing a testing basis for product quality inspection.
6. Circuit breaker installation and commissioning
In newly built or retrofitted substations and power facilities, it can be used for commissioning and performance checks after circuit breaker installation, promptly identifying abnormalities in mechanical mechanisms, operating coils, and operation parameters.
FAQs:
Q: What is the circuit breaker characteristic tester mainly used for testing?
A: The circuit breaker characteristic tester is mainly used for testing the mechanical dynamic characteristics of high-voltage circuit breakers. It can test parameters such as opening/closing time, synchronization, speed, travel, bounce, opening/closing coil current, dynamic resistance, and reclosing.
Q: Can the circuit breaker characteristic tester measure the opening and closing speed of a circuit breaker?
A: Yes. Equipped with speed sensors, the device can measure the circuit breaker's opening speed, closing speed, just-opening speed, just-closing speed, and related motion curves, and analyze the test results.
Q: Can the circuit breaker characteristic tester measure opening/closing coil current?
A: Yes. The device can acquire the operating current of the opening coil and closing coil, and record the current variation process and waveforms, providing test data for analyzing the condition of the operating mechanism and control circuit.
