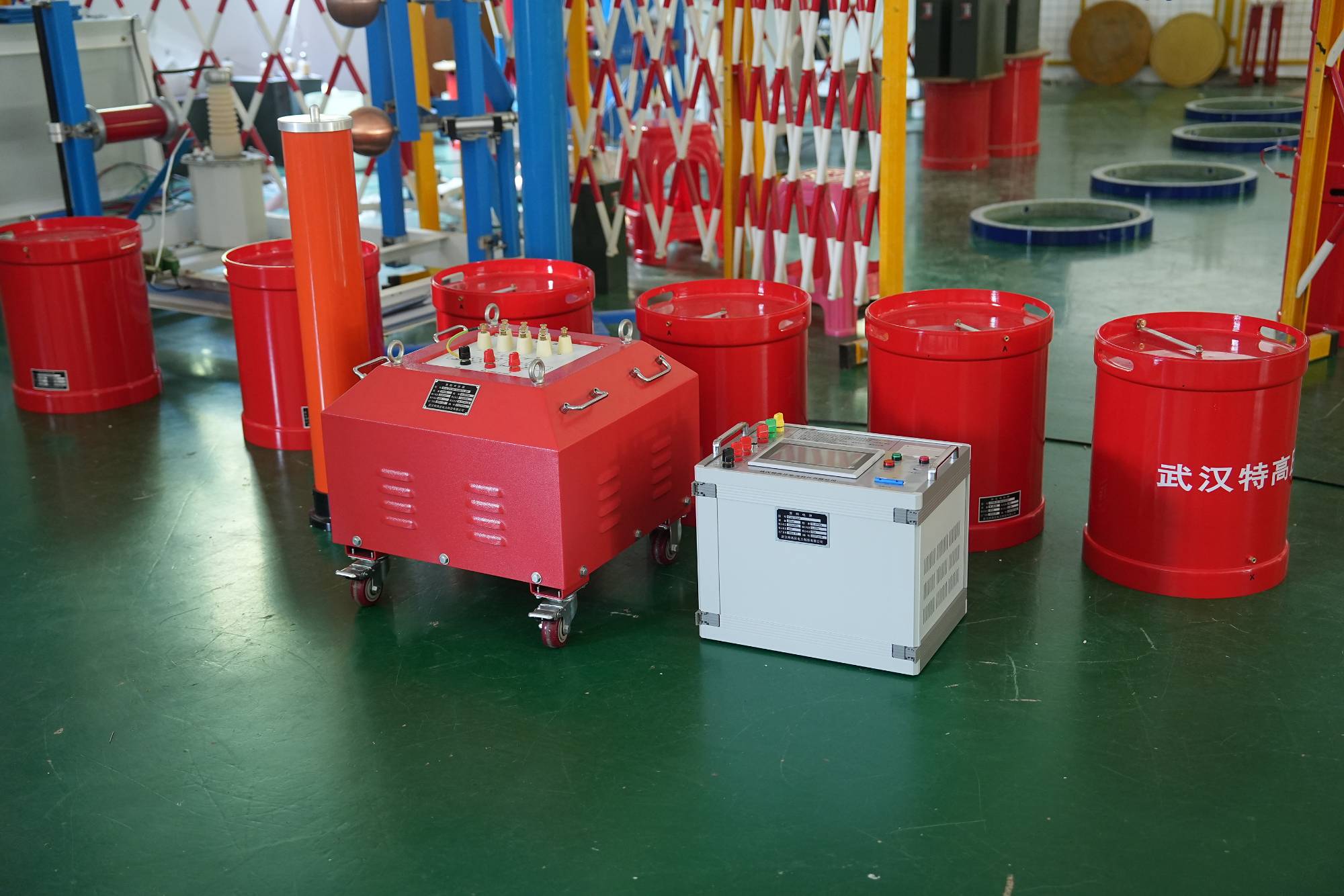

The AC series resonance system under UHV power can help many power workers conduct various power tests more conveniently.

The capacitance deviation of the capacitive voltage divider should not exceed ± 5 of the rated value, and the ratio of the two-stage capacitance values should not be greater than 1.02 times the two-stage capacitance values.

Temperature coefficient of capacitor voltage divider

1) The temperature coefficient of the capacitor of the voltage divider should not exceed plus or minus 5 × 10-4K;

2) The deviation of the voltage division ratio caused by the temperature coefficient of high and low voltage capacitors should not exceed 1/20 of the accuracy level limit

The insulation level of the capacitive voltage divider should be able to withstand 1.2 times the rated voltage for 1 minute without flashover or breakdown. The discharge performance of the capacitive voltage divider distributor should withstand the rated voltage discharge current and should not be damaged. The frequency coefficient of a capacitive voltage divider shall not exceed 1.005 when the ratio of the maximum to minimum division ratio is within the operating frequency range.

The performance requirements of the console, buttons, and indicator lights should comply with the requirements of GB/T11920. Control and protection should be reliable and effective, and all instructions should be correct and reliable. The calibration indicator instrument should use a zero adjustment instrument, and the calibration indicator should be sensitive, accurate, and reliable.
