Did you know? Behind our enjoyment of stable power supply, there is a group of unknown 'invisible guardians' working hard, who are the key equipment in the power system - circuit breakers. And the circuit breaker detector is the secret weapon that ensures these "guardians" are always in the best condition. What is a circuit breaker detector? How does it work?

What is a circuit breaker? What role does the circuit breaker detector play?

Simply put, a circuit breaker is like a "safety valve" for the power grid. When there is an abnormal current (such as overload or short circuit), it will quickly "trip" and cut off the power supply, thus protecting the equipment from damage and ensuring personal safety. The circuit breaker detector is a specialized equipment used to detect various performance indicators of circuit breakers. It can monitor key parameters such as the operating characteristics, insulation performance, and contact resistance of circuit breakers in real time, helping us discover potential fault hazards in a timely manner.

The 'behind the scenes' driving force that affects the performance of circuit breakers

The performance of circuit breakers is not constant, and various factors can have an impact on it:

Operating environment: Temperature, humidity, dust, and other factors can accelerate the aging of equipment.

Operating frequency: Frequent opening and closing operations will increase mechanical wear.

Electrical load: Running under high load for a long time will exacerbate the erosion of contacts.

Maintenance: Regular inspection and maintenance are key to maintaining its good condition.

Smart Detection: The Powerful Function of Circuit Breaker Tester

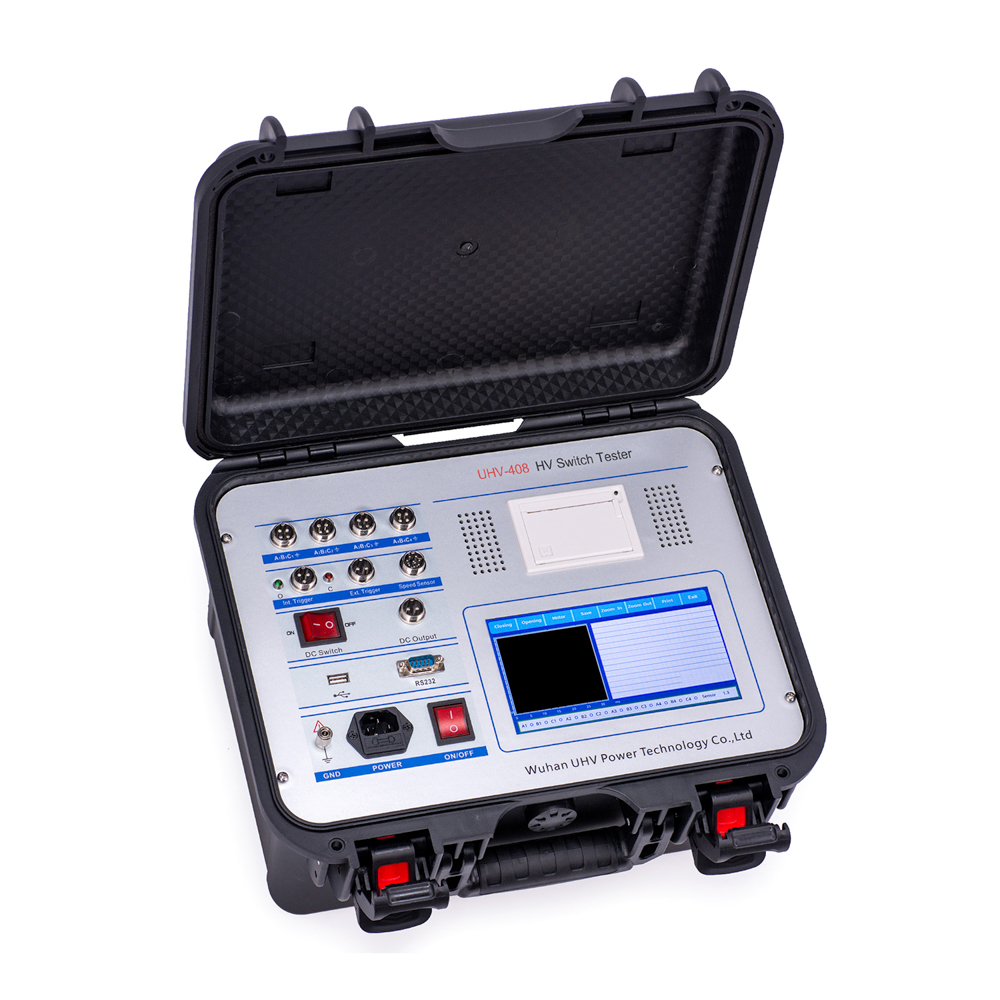

To address these challenges, Wuhan UHV Power Technology Co., Ltd. has launched a circuit breaker detector that integrates various advanced detection technologies. It can:

Accurate measurement: Accurately measure the closing and opening time, as well as the closing surge current of the circuit breaker.

Comprehensive evaluation: Evaluate the insulation resistance of the circuit breaker and determine whether its insulation performance meets the standard.

Contact diagnosis: Check the contact resistance to reflect the degree of good contact between the contacts.

Data analysis: Combined with fault diagnosis functions, generate detailed detection reports to provide scientific basis for maintenance decisions.

How to use a circuit breaker detector well?

To fully utilize the role of circuit breaker detectors, the key is to "use" them.

Develop a reasonable testing cycle: Based on the importance of the circuit breaker, operating environment, and historical data, scientifically plan the testing frequency.

Standardized operating procedures: Strictly follow the instrument instructions and procedures to ensure the accuracy of data.

Pay attention to testing reports: carefully analyze testing results, and promptly issue warnings and handle abnormal data.

Continuous learning and practice: Understand the latest detection technologies and methods, and continuously improve operational skills.

Intelligent upgrade, the innovation path of Wuhan UHV Power Technology Co., Ltd

In the field of power technology, Wuhan UHV Power Technology Co., Ltd. has always been at the forefront. They continuously invest in research and development, aiming to provide smarter, more convenient, and more reliable power detection solutions. Through continuous technological innovation, Wuhan UHV Power Technology Co., Ltd. is contributing significantly to the safe and stable operation of the power system.

Frequently Asked Questions (FAQ)

Q1: What performance is the circuit breaker tester mainly used to detect? A1: It mainly includes key performance indicators such as the operating time, synchronicity, coil voltage, insulation resistance, and contact resistance of the circuit breaker.

Q2: Why does the contact resistance of a circuit breaker affect its performance? A2: Excessive contact resistance means poor contact, which can increase energy loss, generate local heating, and in severe cases, may cause contact burnout, affecting the normal opening and closing of the circuit breaker.

Q3: Does the circuit breaker detector require professional personnel to operate? A3: Yes, in order to ensure the accuracy of detection and the safety of operation, it is usually necessary for professionally trained technicians to carry out the operation.

Q4: How to handle the detection results of the circuit breaker detector? A4: The test results need to be compared with national or industry standards, and analyzed based on the actual operation of the circuit breaker to determine if there are any potential faults and develop corresponding maintenance plans.

Q5: Is maintenance and upkeep of circuit breaker detectors important? A5: Very important. Regular calibration and maintenance can ensure the accuracy and reliability of the instrument, extending its service life.
