Product Introduction

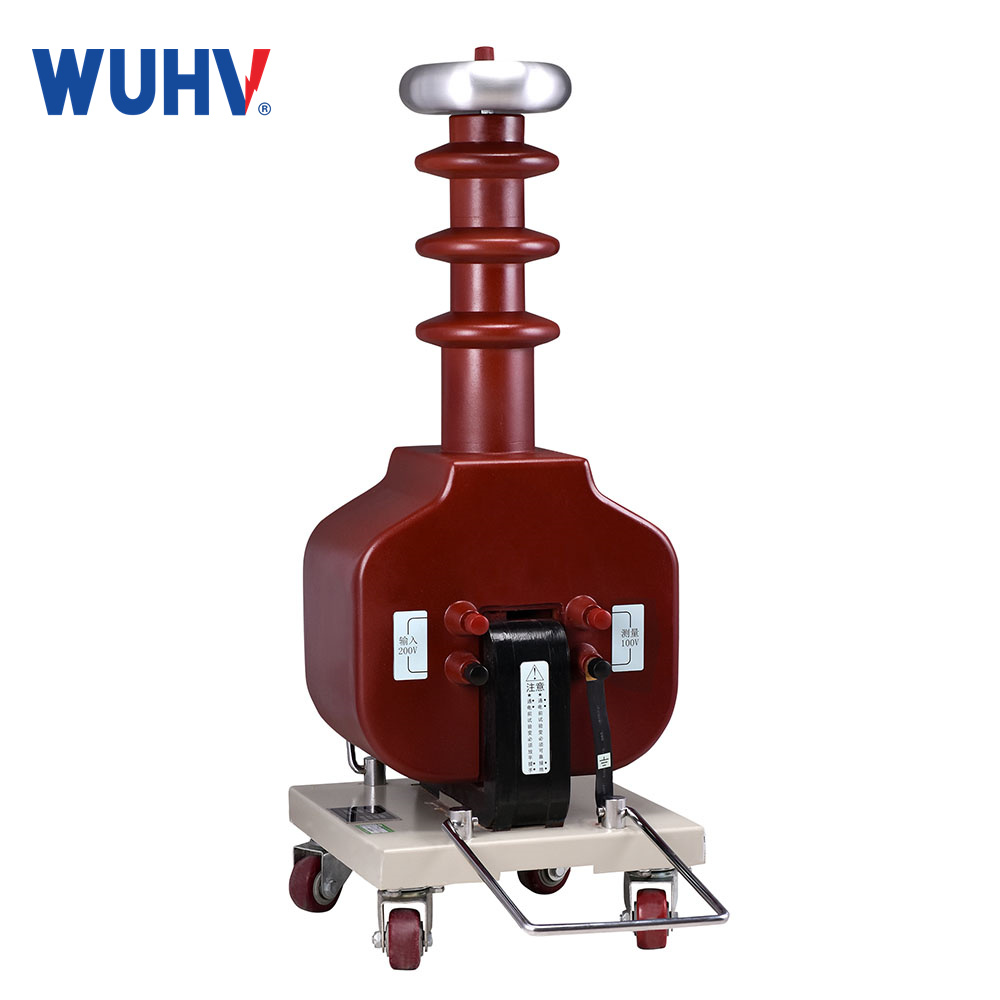

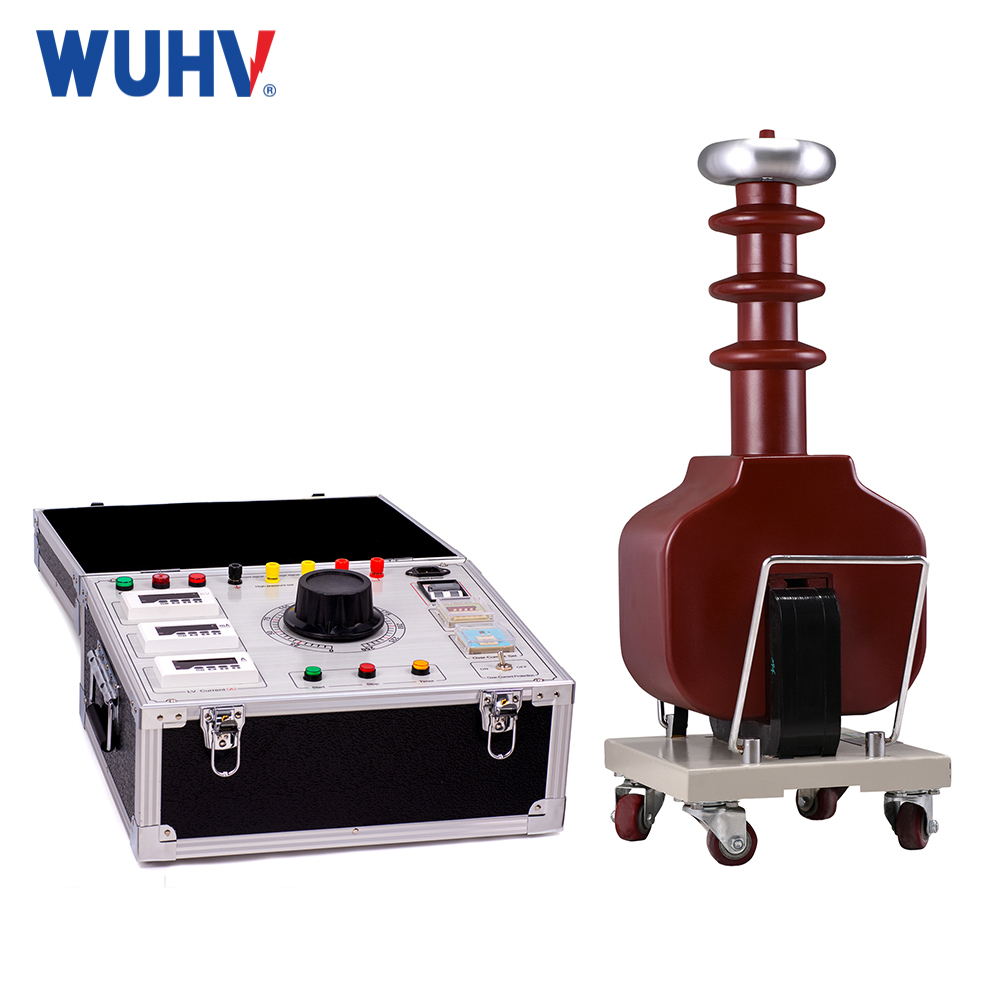

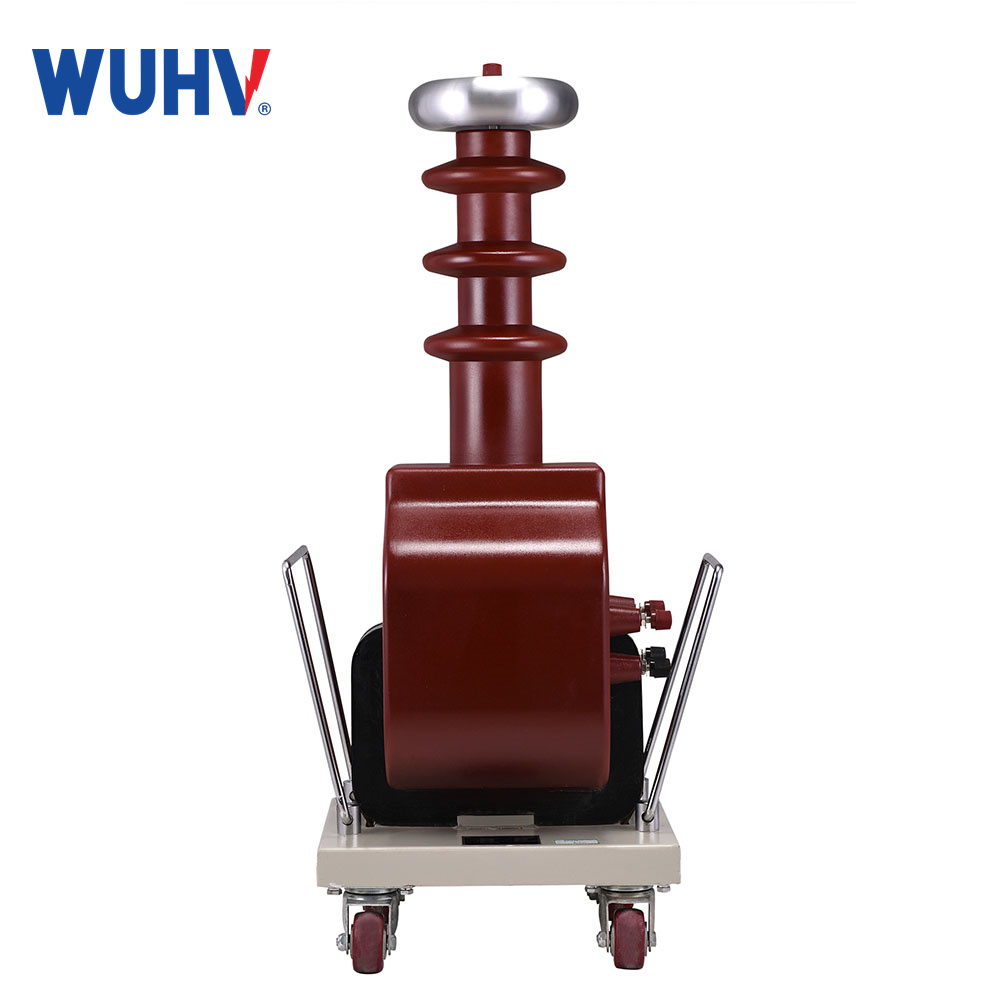

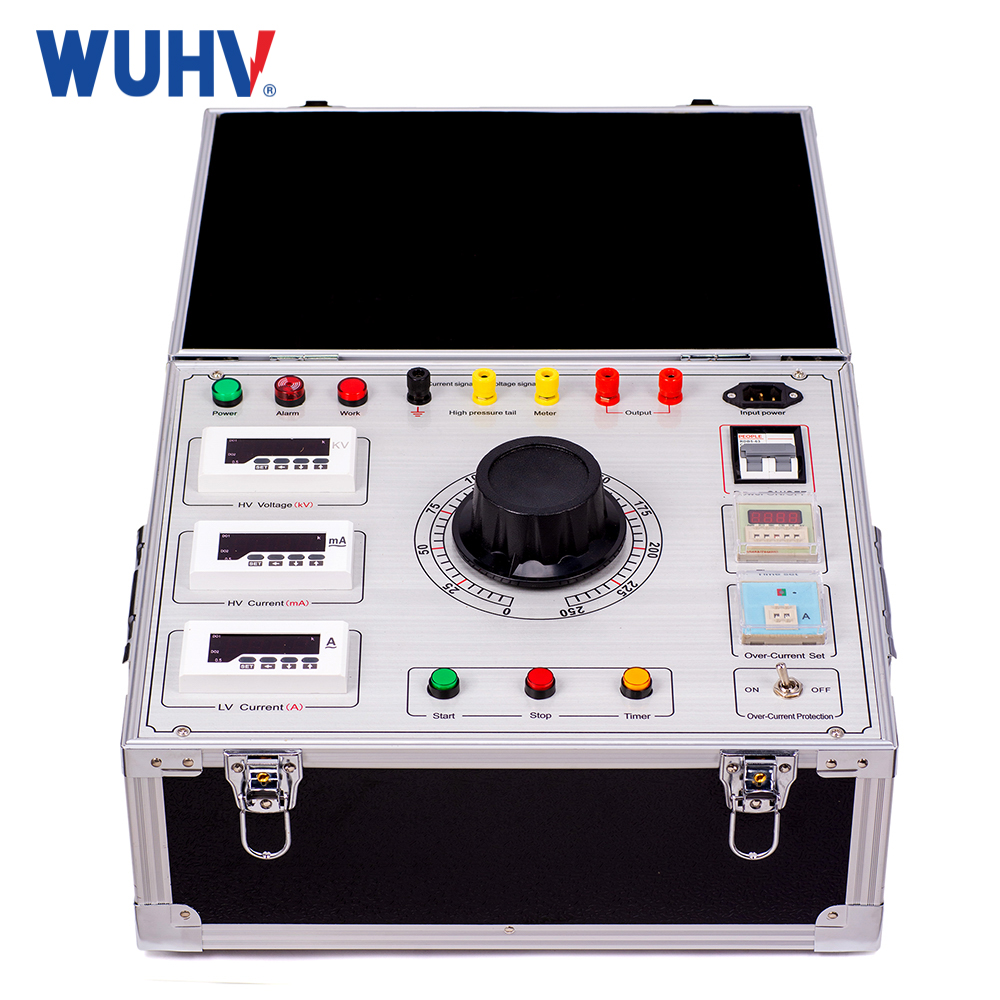

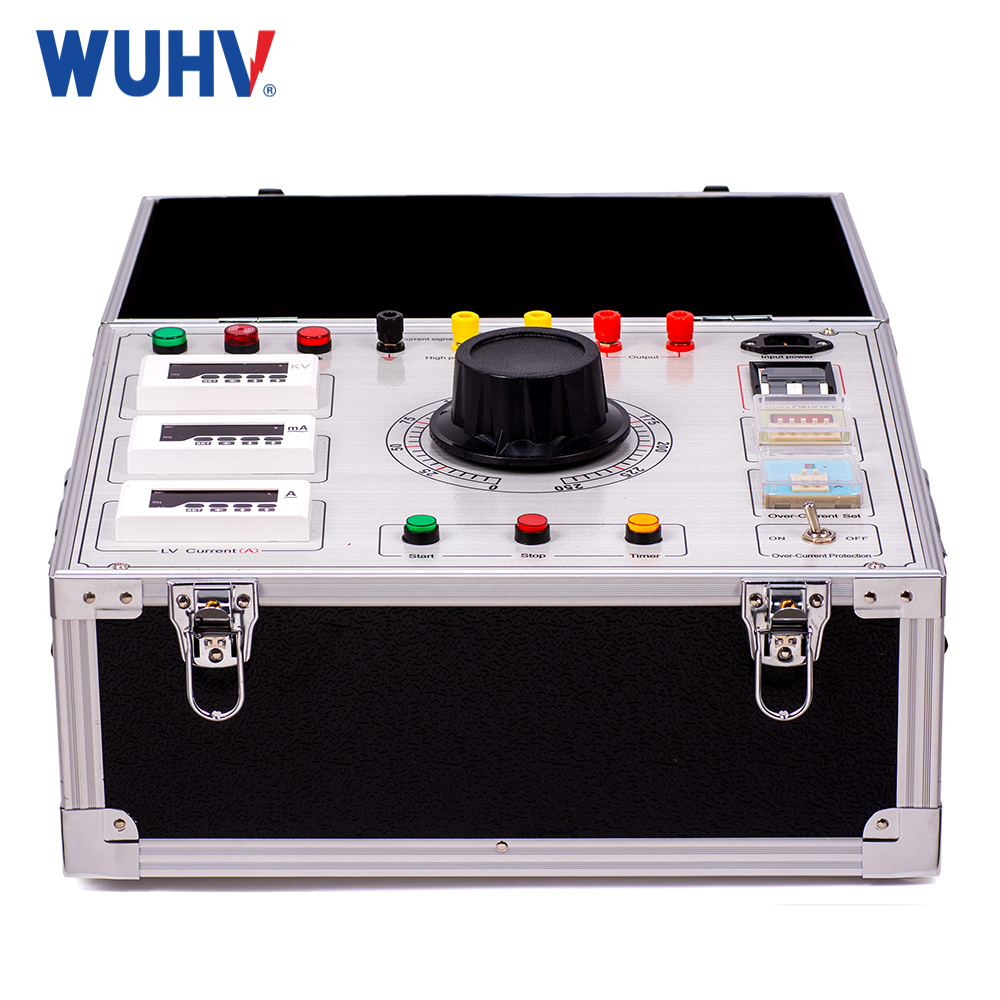

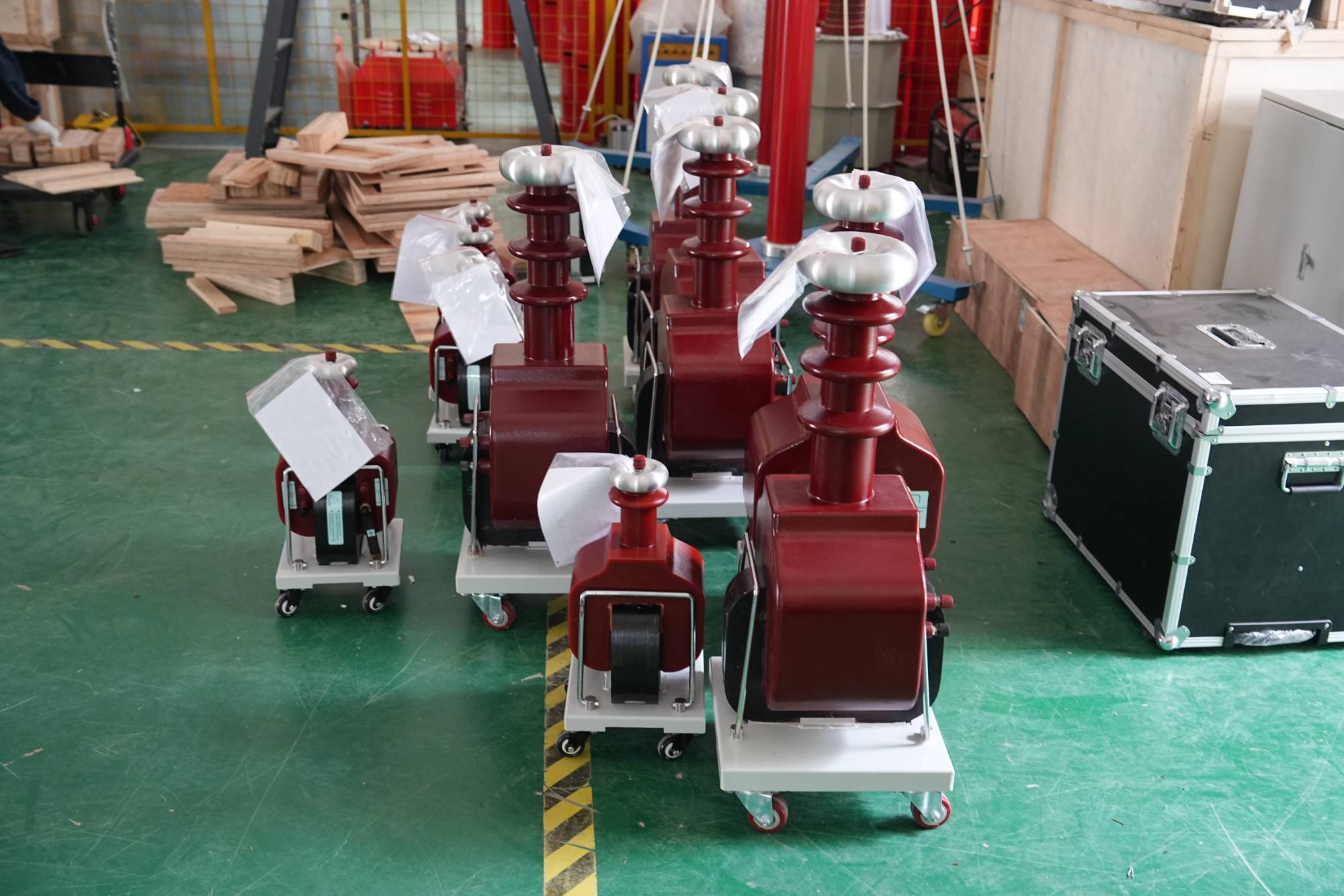

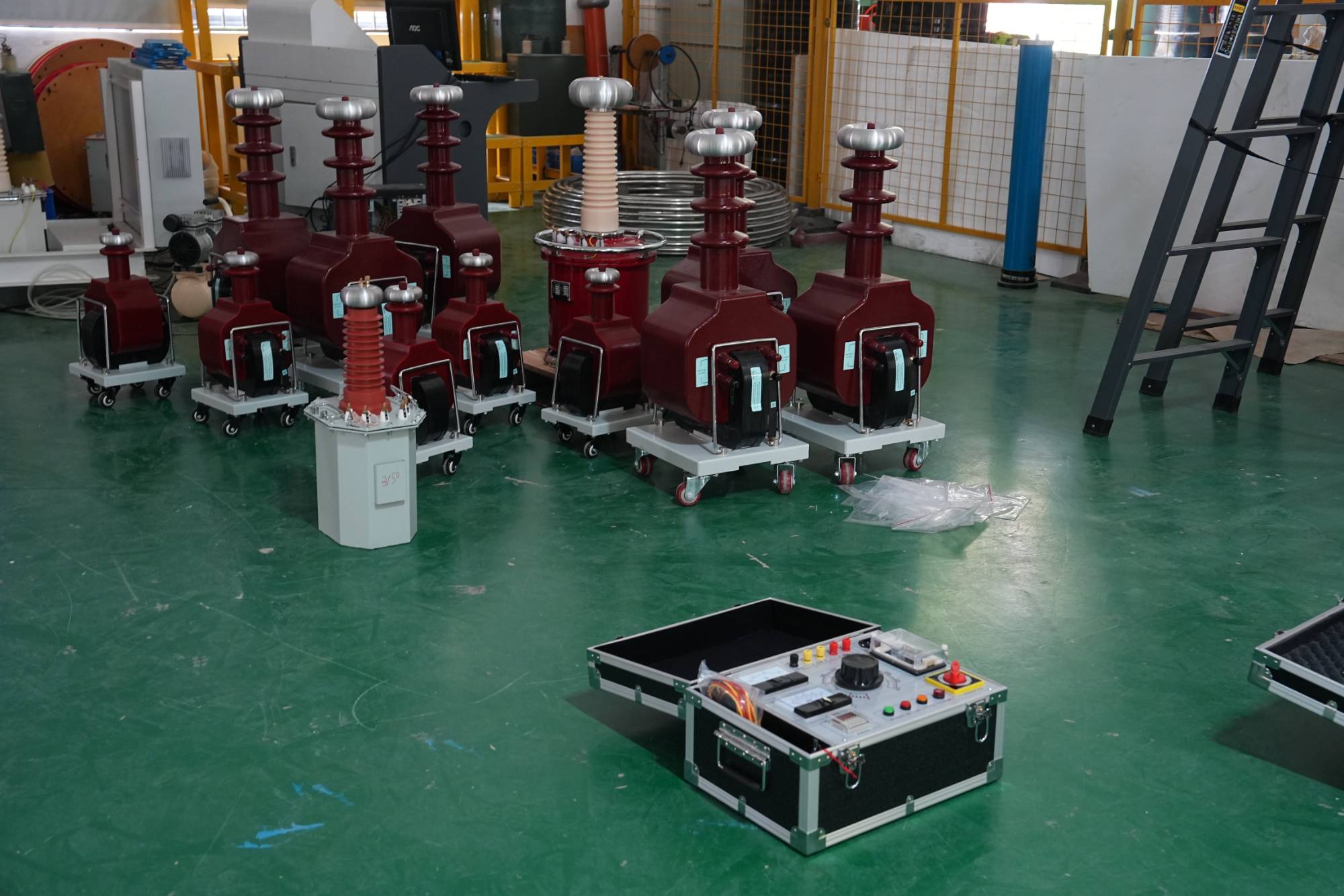

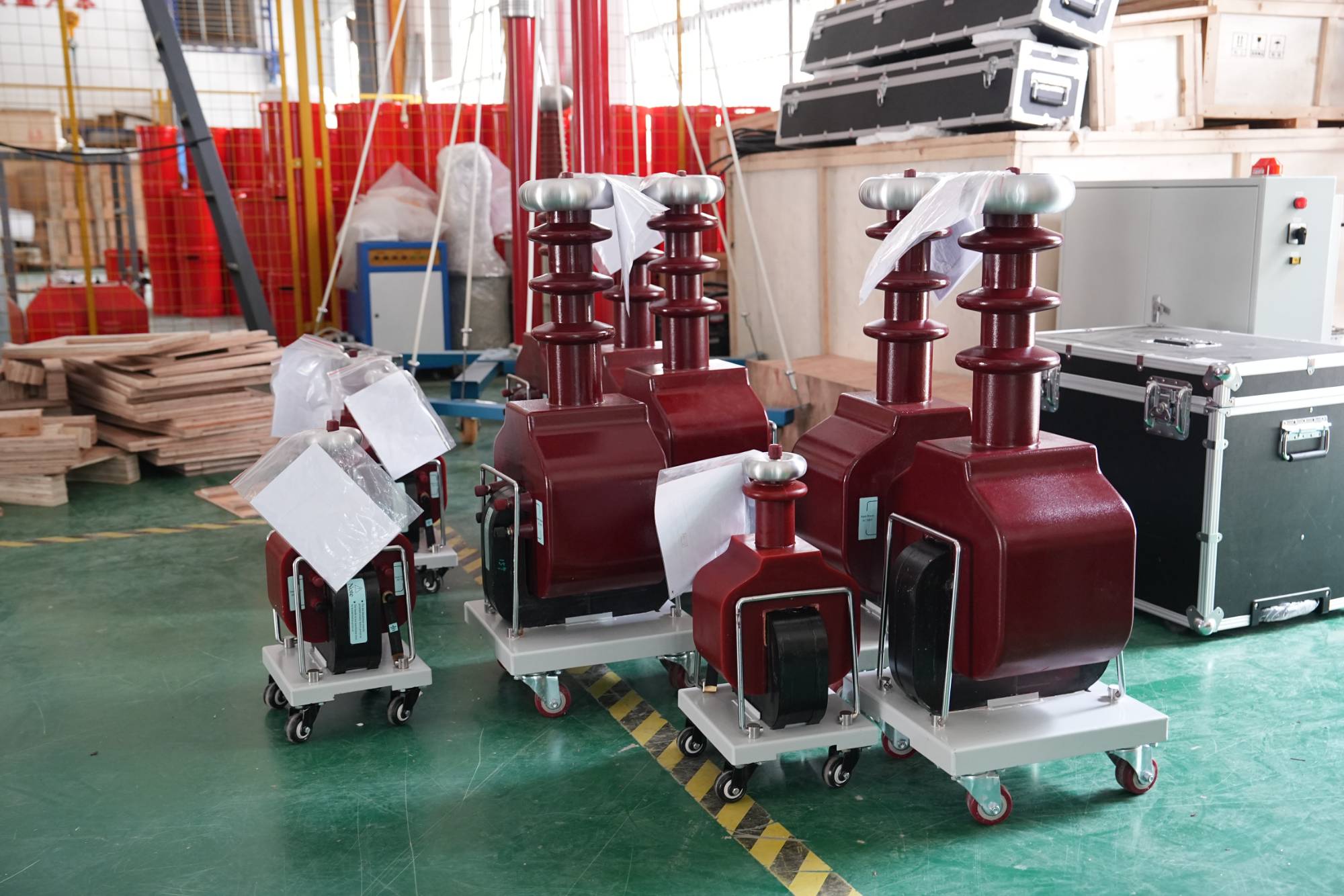

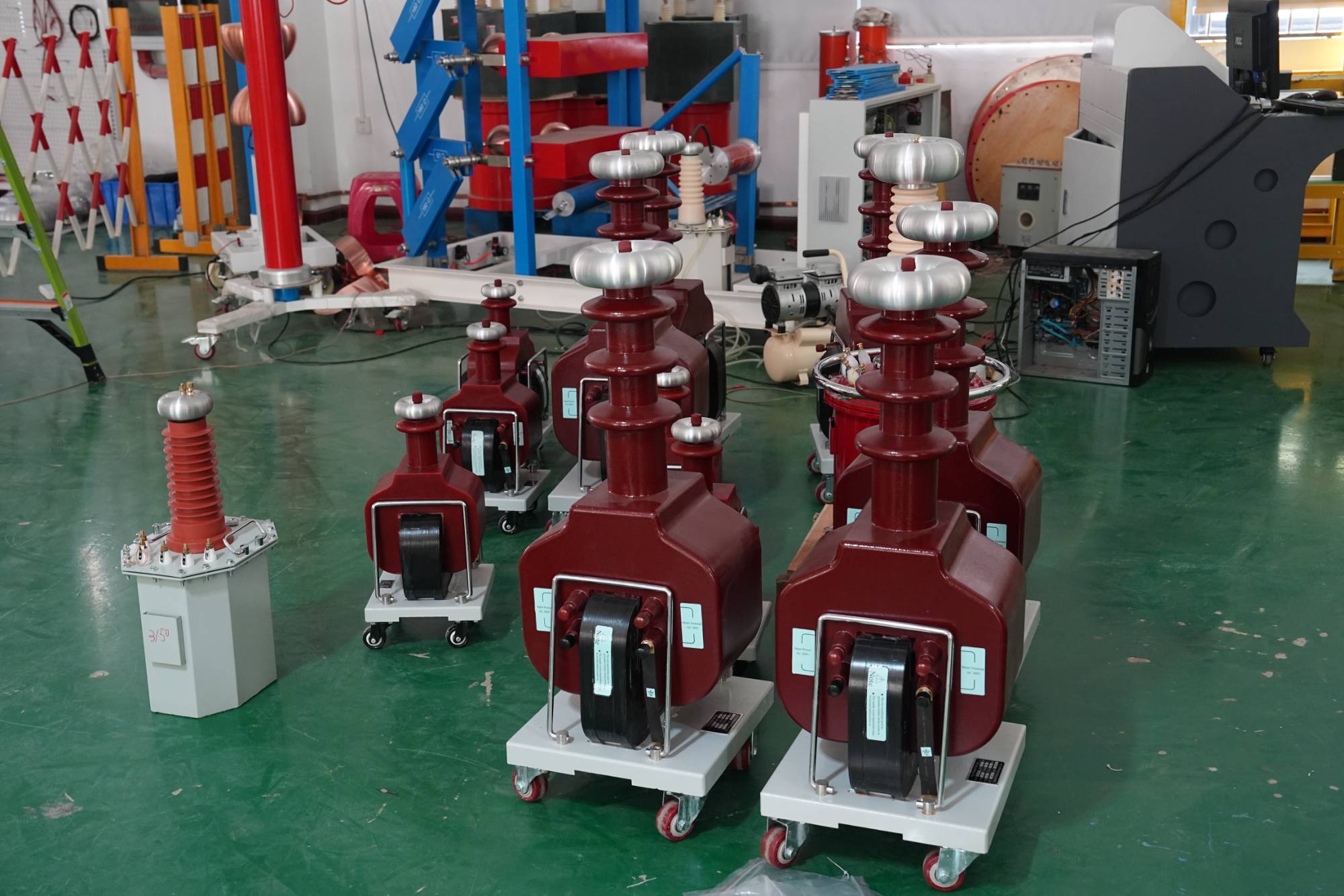

The GTB 5kVA Digital Display Dry Type AC/DC Hipot Test Set is a modern electrical testing system that combines a 5kVA capacity for testing medium‑sized equipment with digital precision for accurate voltage and current measurement. Its dry‑type design eliminates the need for oil insulation, making it safer and more environmentally friendly. This versatile set performs both AC and DC dielectric withstand tests, making it ideal for quality control and maintenance applications in utility and industrial environments.
 |  |
פרמטרים טכניים
מתח עכבה | ≤12% |
צורת גל מתח פלט | גל סינוס |
עליית טמפרטורת פני השטח | ＜55℃ |
זרם ללא עומס | ＜4% |
Main product specifications
דֶגֶם | קיבולת | מתח נכנס | מתח פלט | זרם מוצא | פלט מתח גבוה DC | מִשׁקָל |
(kVA) | (IN) | (kV) | (אִמָא) | (kV) | (ק"ג) | |
1.5/50 | 1.5 | 200 אוֹ 400 | 50 | 30 | 70 | 15 |
3/50 | 3 | 60 | 20 | |||
5/50 | 5 | 100 | 30 | |||
10/50 | 10 | 200 | 40 | |||
15/50 | 15 | 300 | 50 | |||
20/50 | 20 | 400 | 55 | |||
25/50 | 25 | 500 | 60 | |||
30/50 | 30 | 600 | 65 | |||
5/100 | 5 | 200 אוֹ 400 | 100 | 50 | 140 | 60 |
10/100 | 10 | 100 | 65 | |||
15/100 | 15 | 150 | 70 | |||
20/100 | 20 | 200 | 75 | |||
25/100 | 25 | 250 | 80 | |||
15/120 | 15 | 120 | 125 | 85 | ||
20/120 | 20 | 160 | 90 | |||
25/120 | 25 | 200 | 95 | |||
30/120 | 30 | 250 | 100 |
 |  |
Product Features:
1、The dry test transformer is small in size、in light weight、compact structure、maintenance-free
2、Simple and intuitive wiring, easy to use
3、Good insulation reliability，good-looking appearance
4、The dry test transformer has over current protection function
Advantage
Dry type test transformers have the following advantages compared to oil immersed transformers:
Environmental friendliness: does not use transformer oil, avoids oil pollution problems, and meets modern environmental protection requirements.
Operation safety: less likely to cause fires and explosions, making operation safer and more reliable.
Convenient maintenance: Low maintenance cost, no need to regularly replace transformer oil, simple maintenance.
Application Areas
Dry type test transformers are widely used in various fields, including but not limited to the following areas:
Electric power industry: used for insulation testing, partial discharge detection and other work of power equipment.
Industrial and mining enterprises: used for switch testing, withstand voltage testing, and equipment insulation testing of high-voltage electrical equipment.
Research Institute: Conduct experimental research and equipment testing under high pressure and high temperature conditions in the laboratory.
Aerospace: Used for insulation performance testing of high-voltage equipment such as aircraft and spacecraft.
Frequently Asked Questions
Q: Can dry-type transformers be installed outdoors?
A: Sure, but the prerequisite is that it must use a sealed or cast resin shell and meet the outdoor use grade (usually IP23 or higher). This type of design can prevent moisture, dust, and corrosive air, making it suitable for coastal, industrial, or humid areas.
Q: How to clean the surface ash of dry-type transformers safely?
A: When the power is off, use dry compressed air to blow and clean. Do not use a damp cloth to directly wipe the winding parts to avoid moisture infiltration and affecting the insulation performance of the equipment.
Q: Do dry-type transformers need to be equipped with temperature controllers?
A: In conventional scenarios, it is recommended to install a dedicated temperature controller that can monitor the operating temperature of the winding in real time. When the temperature exceeds the limit, it will automatically trigger an alarm or start the cooling fan, greatly reducing the probability of overheating faults.
Q: What is the safe distance from personnel during the operation of dry-type transformers?
A: For dry-type transformers with a voltage level of 10kV, the safety protection distance during normal operation should not be less than 0.7m. It is recommended to set up dedicated protective isolation barriers around to prevent non professionals from approaching.
