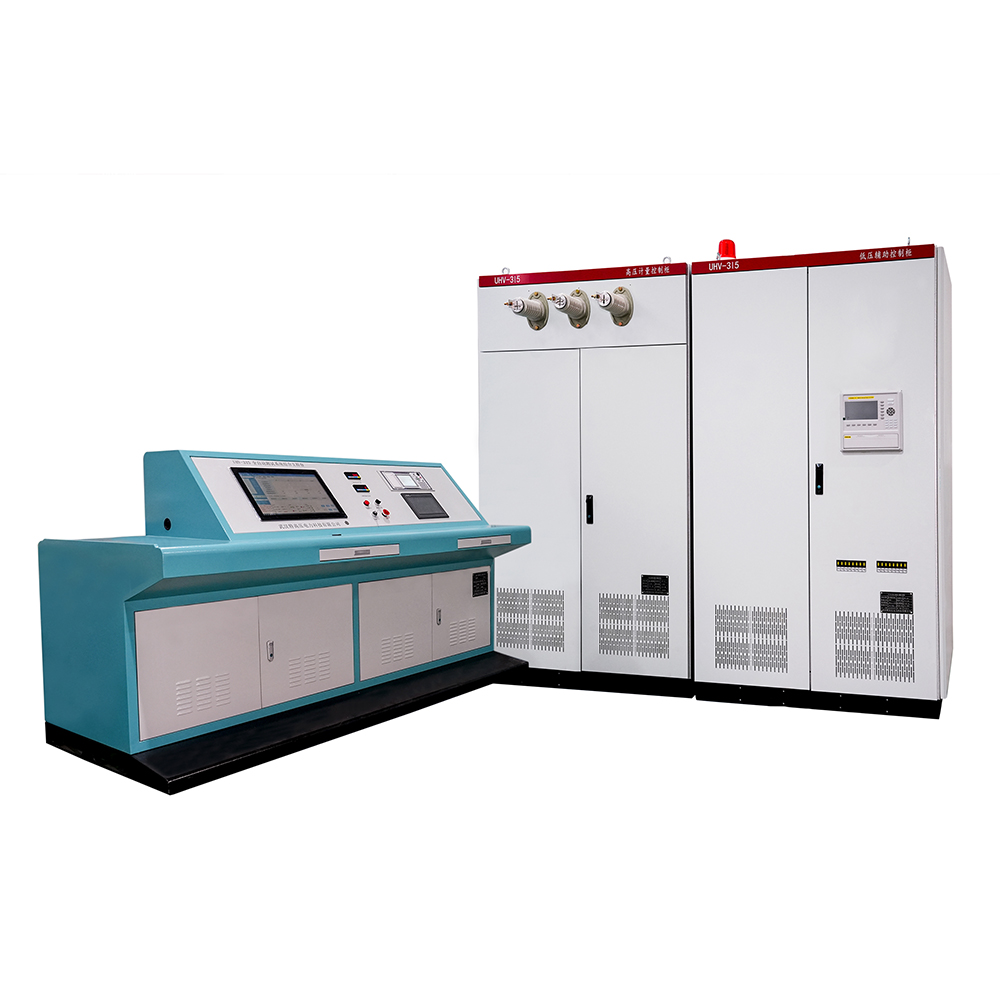

Transformer comprehensive testing bench (or transformer comprehensive tester)is a device used for comprehensive testing and analysis of transformer performance. It can play an important role in various situations, and the following are some typical application scenarios:
1. Quality control before leaving the factory
Situation description:
After the completion of transformer production, manufacturers need to ensure that each transformer meets quality standards and technical specifications to ensure the reliability and safety of the product.
Analysis:
The transformer comprehensive testing platform can conduct comprehensive pre factory tests on transformers, such as no-load tests, short-circuit tests, DC resistance tests, insulation resistance tests, etc. These tests can evaluate the performance parameters of the transformer, such as no-load loss, short-circuit loss, power factor, etc., to ensure that the transformer meets the design requirements.
2. Preventive maintenance and fault diagnosis
Situation description:
During the operation of transformers, performance degradation or potential faults may occur due to environmental conditions, load changes, and other factors.
Analysis:
Preventive maintenance and fault diagnosis can be carried out through the transformer comprehensive testing platform, which can promptly detect and handle problems. For example, insulation resistance testing and leakage current testing can evaluate the insulation status of transformers and detect potential insulation faults. Short circuit test and no-load test can detect the electrical performance of windings and iron cores, as well as evaluate the overall performance of transformers.
3. Handover acceptance and installation debugging
Situation description:
Before installing the transformer into the power system, it is necessary to conduct handover acceptance and installation debugging to ensure that the transformer can adapt to the operating environment of the power system and its performance parameters meet the requirements of the power system.
Analysis:
The transformer comprehensive testing platform can be used for performance testing and verification during handover acceptance and installation and commissioning processes. For example, DC resistance testing and three-phase insulation resistance testing can verify the electrical connections and insulation performance of transformers. Short circuit test and AC withstand voltage test can evaluate the operational performance and stability of transformers at rated voltage.
4. Aging assessment and performance optimization
Situation description:
As the usage time of transformers increases, their performance may gradually decline, requiring aging evaluation and performance optimization.
Analysis:
By conducting aging evaluation and performance optimization through a transformer comprehensive testing platform, the current status of the transformer can be comprehensively understood, and corresponding measures can be taken to extend its service life or improve its performance. For example, insulation resistance testing and leakage current testing can evaluate the degree of insulation aging of transformers, while short-circuit testing and no-load testing can detect changes in the electrical performance of transformer windings and cores.
In summary, thetransformer comprehensive testing platformcan play an important role in quality control, preventive maintenance, handover and acceptance, installation and commissioning, aging evaluation, and performance optimization of transformers. By using this device, we can have a more comprehensive and accurate understanding of the performance status of transformers, and promptly identify and solve problems, thereby ensuring the safe and stable operation of transformers.
